Push-to-Treat Irrigation Gun: Hybrid Design for Plant Treatment and Cleaning

By Ronen Kolton Yehuda (Messiah King RKY), 2025

🔍 Abstract

The Hybrid Push-to-Treat Irrigation Gun (PIG-H) is a next-generation hose-end sprayer designed for dual functionality: precise plant fertigation and general cleaning. Unlike conventional sprayers, it offers two approaches:

Switchable Mode – A single cartridge system where the user can alternate between fertilizers/biologicals and cleaning detergents by rinsing and swapping the cartridge.
Dual-Cartridge Mode – A system with two separate tanks, one for plant treatments and another for cleaning agents, allowing instant mode selection with no cross-contamination.

This dual design makes the device a multi-purpose tool for gardeners, farmers, greenhouse operators, and homeowners.

🌿 Introduction

Irrigation and fertigation sprayers are usually single-use tools: they either deliver nutrients or act as cleaning sprayers. Switching purposes often leads to contamination risks. The Hybrid Push-to-Treat Gun solves this by integrating two safe options: (a) easy cartridge replacement with rinsing, or (b) two dedicated cartridges with an integrated selector switch.

This flexibility allows one device to serve as both a precision plant care tool and a powerful cleaning sprayer.

🔧 Hybrid System Designs

1. Switchable Mode (One Cartridge at a Time)

Refillable cartridge (200–1000 ml) for fertilizers, microbes, or cleaning detergent.
After treatment: flush system with clean water, detach cartridge, and swap contents.
Color-coded cartridges (green = plant inputs, red = cleaning agents) reduce errors.

👉 Use Cases:

Fertilizing plants, then rinsing pots.
Applying microbial inoculants, then washing trays after flushing.

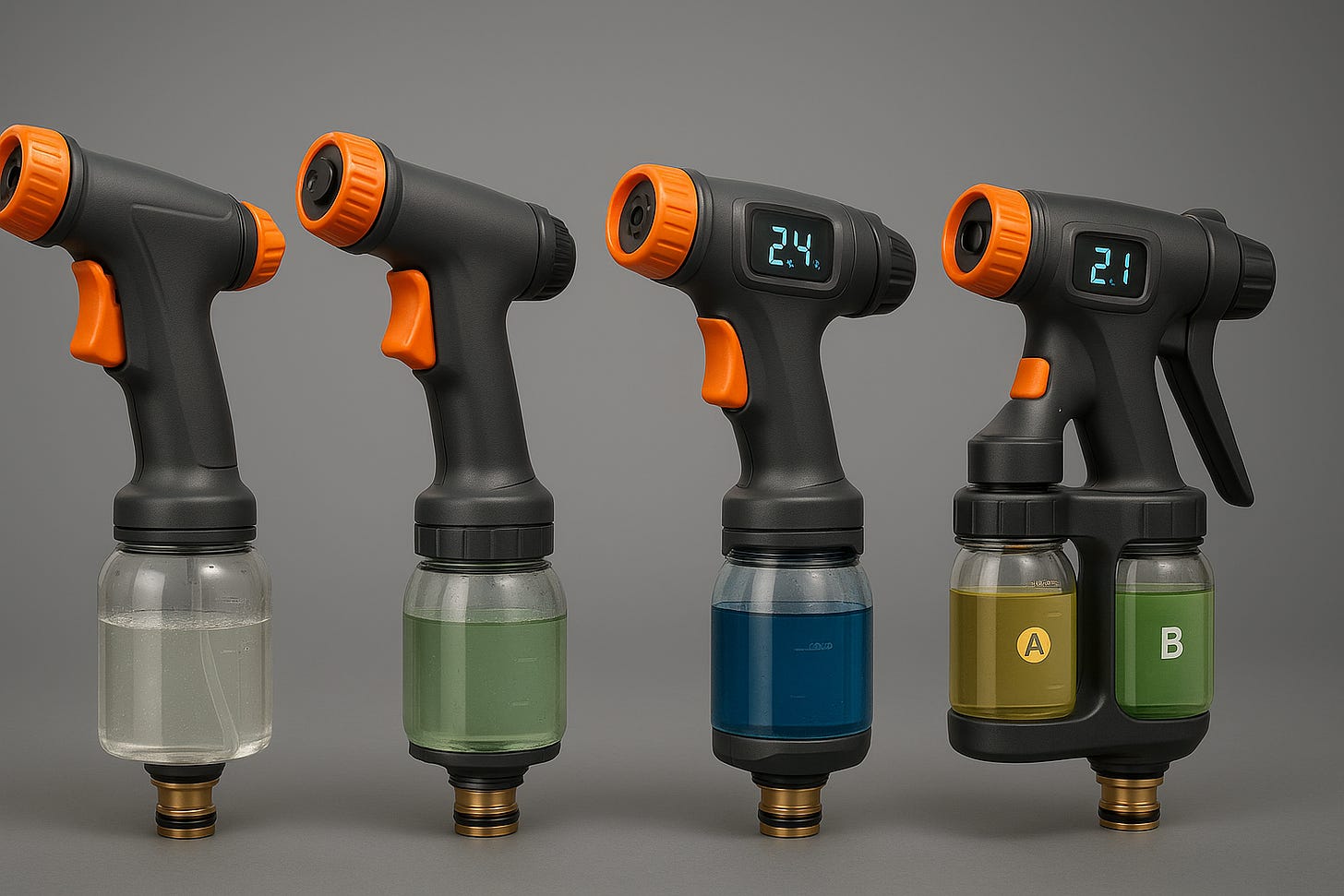

2. Dual-Cartridge Mode (Two Separate Tanks)

Two side-by-side refillable cartridges:
- Tank A: Fertilizers, compost tea, microbes.
- Tank B: Detergents, sanitizers, or cleaning agents.
Selector switch (valve) toggles between Tank A and Tank B.
Independent tubing ensures zero cross-contamination.

👉 Use Cases:

Feeding greenhouse crops while keeping a cleaning line instantly available.
Field use: treat orchard trees with fertilizer, then immediately wash tools with detergent.

⚙️ Technical Features

Mixing Chamber: Turbulence ensures even blending.
Adjustable Spray Nozzle: Mist/cone for plants, jet/stream for cleaning.
Backflow Protection: Prevents contamination of main water supply.
Durable Materials: Food-grade plastics for bio-inputs, chemical-resistant seals for detergents.

Optional add-ons:

Smart Lock System – Prevents cleaning mode activation when plant tank is connected.
Digital Selector – Electronic mode switch with LCD indicator.

🌱 Sustainability and Safety

One device replaces two sprayers, reducing equipment waste.
Water-efficient dosing avoids chemical runoff.
Dedicated tanks or flush protocol ensure microbes are not harmed by detergents.
Reusable cartridges reduce plastic use compared to disposable bottles.

🧩 Market Applications

Farmers & Greenhouses: Fertigation + tool/equipment cleaning.
Home Gardeners: Balcony plants + patio cleaning.
Orchards: Fertilize young trees + wash pruning tools.
NGOs: Multipurpose device for low-resource communities.

✅ Conclusion

The Hybrid Push-to-Treat Irrigation Gun redefines irrigation and sanitation tools. With the choice of switchable single-cartridge mode or dual-cartridge mode, it offers both flexibility and safety.

This innovation ensures that one compact device can handle plant care and cleaning tasks—saving time, reducing contamination, and improving sustainability.

It is truly a 2-in-1 solution for the future of farming, gardening, and household use.

Absolutely. Here is a structured article that proposes several realistic operating architectures for the Push-to-Treat Irrigation Gun, including internal pump options and other mechanisms.

Push-to-Treat Irrigation Gun: Possible Operating Architectures for Nutrient, Microbial, and Cleaning Delivery

Design Options for a Smart Hose-End Treatment and Cleaning Gun

By Ronen Kolton Yehuda (MKR: Messiah King RKY)

Introduction

The Push-to-Treat Irrigation Gun is intended as a flexible hose-end device that can deliver plant nutrition, microbial solutions, soil treatments, and in some versions also cleaning agents such as soap or detergents. Its value depends not only on the product concept itself, but also on the internal operating architecture. Different users and markets may require different mechanisms depending on cost, precision, maintenance, durability, and compatibility with sensitive materials such as living microbes.

This article presents several possible engineering architectures for how such a device can operate. Some are simple and low-cost, while others are more advanced and suitable for premium or professional versions. The goal is not to lock the product into one single mechanism, but to define a family of viable systems.

Core Functional Goal

The device should be able to do one or more of the following:

deliver water only
inject treatment only when the user activates it
support replaceable or refillable cartridges
work with fertilizers, microbial inoculants, biostimulants, soaps, or detergents
avoid backflow and contamination
provide controllable spray patterns
remain practical for gardens, orchards, greenhouses, and household cleaning

Architecture 1: Passive Venturi Suction System

How it works

This is the classic hose-end injection principle. Water flows through a narrowed chamber, creating pressure drop and suction. That suction draws liquid from the cartridge into the water stream.

Main components

hose connector
venturi chamber
suction tube
cartridge or reservoir
on/off dosing valve
spray nozzle

Advantages

simple
low cost
no battery needed
easy to manufacture
few moving parts

Limitations

dosing accuracy depends on water pressure
weaker with viscous liquids
may be less suitable for highly controlled dosing
can stress some microbial solutions if geometry is too narrow

Best for

low-cost consumer model
home gardeners
simple fertilizer and soap delivery

Architecture 2: Pump-in-Cartridge System

How it works

The cartridge itself contains a small pump that pushes treatment into the water line. The gun becomes more like a control body, while the cartridge becomes an active dosing module.

The pump may be:

miniature electric pump
manual plunger pump
squeeze-driven diaphragm
spring-loaded metering pump

Main idea

Instead of relying only on water pressure to suck the material, the cartridge actively delivers it.

Advantages

more precise dosing
can handle thicker liquids better
allows independent control from hose pressure
better for premium versions
cartridge can become a smart replaceable module

Limitations

more complex
higher manufacturing cost
pump durability must be tested
requires sealing, power, or mechanical trigger transfer

Best for

premium agricultural tool
smart dosing version
thicker nutrients, soaps, or concentrated formulations

Architecture 3: Electric Micro-Pump Inside the Gun Body

How it works

The cartridge is passive, but the gun body contains a rechargeable electric pump that draws liquid from the cartridge and meters it into the water stream.

Main components

rechargeable battery
micro-pump
trigger switch
cartridge docking port
control board
indicator lights or display

Advantages

accurate injection control
can offer multiple dose settings
one powered gun can work with many cartridge types
suitable for digital or smart features

Limitations

battery charging required
electronics add cost
water sealing becomes more important
more complex servicing

Best for

advanced retail model
greenhouse or professional use
versions with app, display, or programmable dosage

Architecture 4: Manual Trigger Pump System

How it works

The trigger itself mechanically pumps treatment into the water line. Every press activates a small piston or diaphragm that meters a small amount of liquid.

Variants

one pump stroke per trigger press
continuous metering while trigger is held
adjustable stroke length for different dose levels

Advantages

no electricity required
more direct user control
relatively low cost compared to electronic systems
can be built robustly

Limitations

less smooth than electric metering
user effort affects consistency
may be less ideal for long continuous application

Best for

rugged field model
mid-cost design
portable non-electric versions

Architecture 5: Pressurized Cartridge System

How it works

The cartridge is pre-pressurized, or pressure is built manually by the user before operation. When the user activates the selector, the stored pressure pushes the treatment into the line.

Pressure methods

hand pump built into cartridge cap
compressible air chamber
spring bladder
replaceable gas capsule in premium versions

Advantages

independent from hose suction performance
useful for intermittent dosing
can work with thicker liquids
good for compact cartridge modules

Limitations

pressure declines over time unless renewed
added safety and sealing requirements
more complex cartridge design

Best for

portable high-performance cartridge systems
concentrated inputs
modular product family

Architecture 6: Squeeze Cartridge System

How it works

The reservoir is a flexible bottle or pouch. The user squeezes it manually to inject material into the water stream or onto the target directly.

Advantages

very simple
low cost
easy to understand
lightweight
no electronics and no internal pump required

Limitations

less precise
depends on user hand pressure
not ideal for large-scale or repeated dosing
may not integrate as elegantly into a premium device

Best for

entry-level model
hobby gardening
emergency or low-resource settings

Architecture 7: Dual-Line Selector System

How it works

The gun contains two separate intake lines and two separate cartridges:

one for plant treatment
one for soap, detergent, or cleaning agents

A selector switch routes the system to one source or the other.

Advantages

no need to swap cartridges constantly
cleaner workflow
supports true dual-use device
can reduce contamination risk

Limitations

bigger device body
more tubing and valves
must be carefully designed to prevent crossover

Best for

hybrid plant-care and cleaning model
greenhouse and orchard operators
premium home and garden version

Architecture 8: Replaceable Head Module System

How it works

The base gun remains the same, but the user changes the functional head:

fertigation head
microbial-safe head
detergent-cleaning head
jet-cleaning head

Each head contains its own internal pathway, nozzle design, and possibly metering element.

Advantages

modular product family
easier cleaning and maintenance
safer separation between functions
strong commercial accessory model

Limitations

user must keep track of modules
connection reliability is critical
added tooling for multiple heads

Best for

scalable product line
retail ecosystem with accessories
professional users who need flexibility

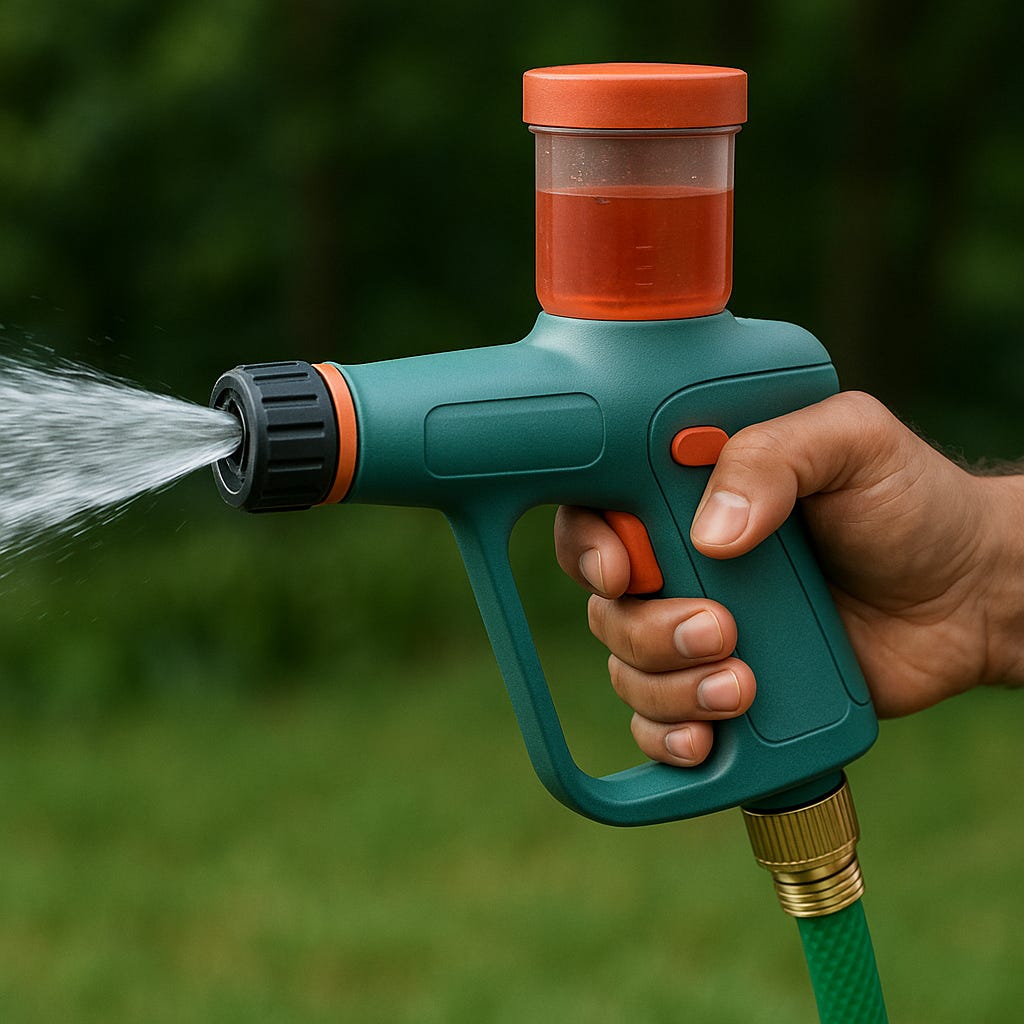

Architecture 9: Gravity-Assisted Reservoir System

How it works

A top-mounted reservoir sits above the mixing point, and gravity helps the flow of treatment into the water line when a valve opens.

Advantages

mechanically simple
minimal power needs
low part count

Limitations

depends on orientation
not ideal for handheld use at all angles
dosing precision is limited

Best for

fixed-position applications
bench-mounted greenhouse version
simple semi-stationary system

Architecture 10: Smart Metering Cartridge with Chip Recognition

How it works

Each cartridge contains not only fluid but also an identification element such as a chip, code, or magnetic key. The gun automatically recognizes whether the cartridge contains:

fertilizer
microbes
foliar spray
detergent
sanitizer

The gun then adjusts allowed spray mode, flow limits, or warnings.

Advantages

prevents mistakes
supports smart lockouts
strengthens brand ecosystem
useful for professional and commercial scaling

Limitations

higher cost
proprietary system
more electronics and software needed

Best for

smart premium platform
professional growers
future connected versions

Best Architecture Families by Market Level

1. Basic Consumer Model

Best choices:

passive venturi suction
squeeze cartridge
manual trigger pump

These are simple, affordable, and practical.

2. Mid-Level Prosumer Model

Best choices:

manual trigger pump
pressurized cartridge
dual-line selector system

These offer stronger functionality without requiring full electronics.

3. Premium Professional Model

Best choices:

electric pump in gun body
pump-in-cartridge
smart metering cartridge
replaceable head module system

These support precision, modularity, and higher margins.

Microbe Compatibility Considerations

If the system is meant to deliver living microbes, some architectures are better than others.

Preferable for microbes

gentle manual pump
wide-bore electric metering
low-shear venturi geometry
dedicated microbial cartridge and head

Use with caution

very narrow venturi channels
aggressive high-speed impellers
detergent-sharing paths without strict washing protocol

The internal bores should remain relatively smooth and wide, and the device should minimize sharp turbulence or unnecessary pressure shock if live bio-inputs are a core use.

Cleaning and Soap Compatibility Considerations

If the product also supports soap or detergent, then the system should include:

chemical-resistant seals
dedicated cleaning cartridge or pathway
flushing mode
backflow prevention
clear visual marking between plant and cleaning use

For hybrid models, a dual-line or replaceable-head system is stronger than a single shared path unless the wash protocol is very reliable.

Most Realistic Product Strategy

A strong commercial strategy may be to develop this concept in stages:

Version 1

Passive venturi or manual trigger model
Affordable and easy to launch.

Version 2

Dual-cartridge selector model
Better for plant treatment plus cleaning.

Version 3

Rechargeable smart pump model
For premium agriculture and greenhouse markets.

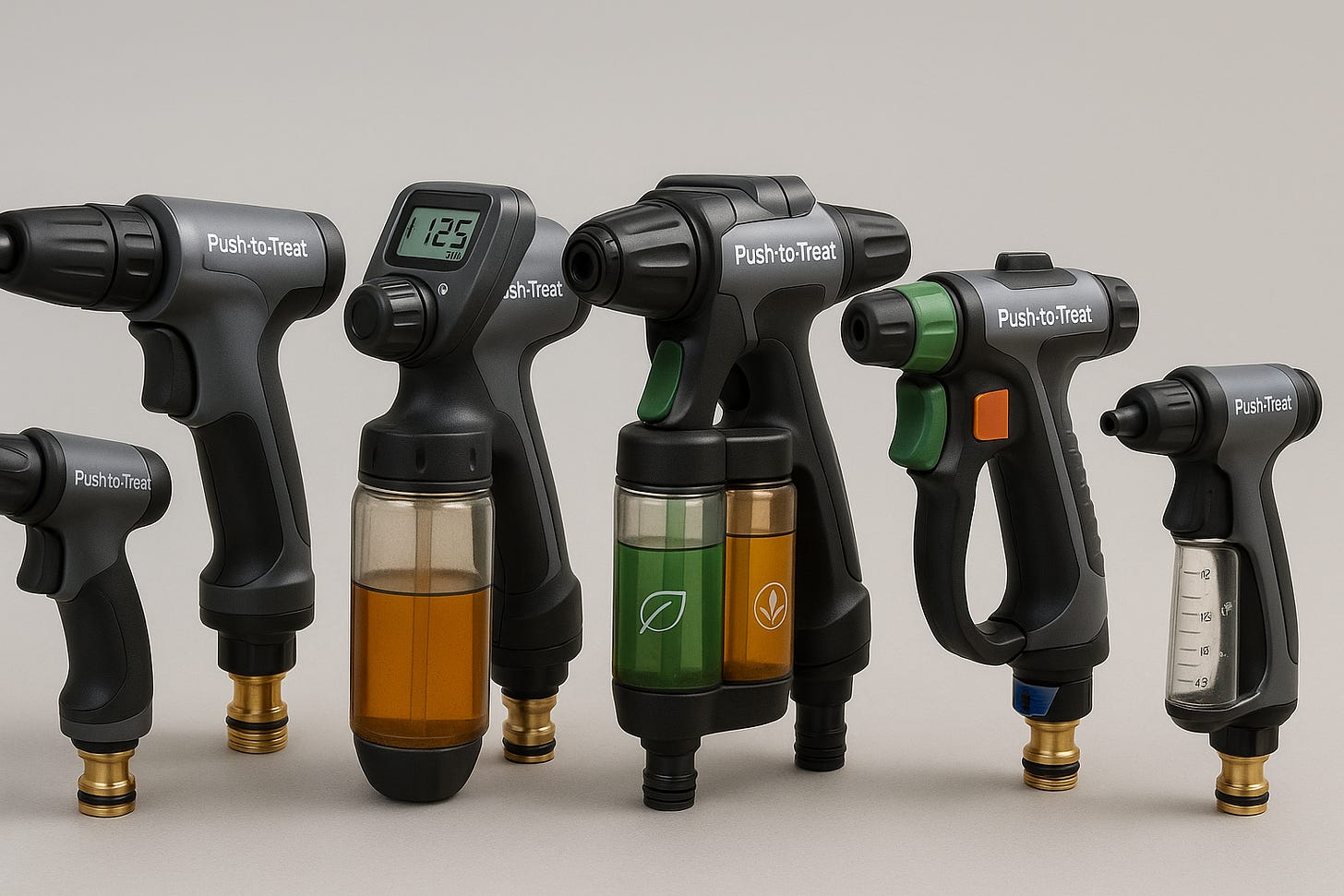

Version 4

Modular platform
Interchangeable heads, coded cartridges, smart control, professional accessories.

This approach allows the invention to start simple and grow into a family of products.

Conclusion

The Push-to-Treat Irrigation Gun does not need to depend on one single mechanism. It can be developed as a flexible platform with several valid architectures, each suited to a different market and performance level.

The most important design paths include:

passive venturi injection
manual trigger pumping
electric micro-pump systems
pump-in-cartridge modules
dual-line selector designs
modular replaceable heads
smart coded cartridges

Together, these options show that the concept is not only possible, but expandable. The invention can exist as a low-cost household sprayer, a dual-use plant-and-cleaning tool, or a premium smart agricultural dosing platform.

This makes the Push-to-Treat Irrigation Gun not just one product, but a potentially broad and scalable product family.

Legal and Authorship Notice

The Push-to-Treat Irrigation Gun concept, including its operating architectures, modular cartridge ideas, pump-assisted systems, hybrid treatment-cleaning designs, and related design logic, is presented here as an original conceptual publication by Ronen Kolton Yehuda (MKR: Messiah King RKY).

This text serves as a public authorship and concept record. Any commercial development, licensing, engineering collaboration, or manufacturing partnership should be conducted with explicit written agreement from the author.

Water-Pressure and Gravity-Driven Cartridge Architectures for the Push-to-Treat Irrigation Gun

Alternative Injection Systems for Plant Treatment, Soap, and Cleaning Materials

By Ronen Kolton Yehuda (MKR: Messiah King RKY)

Abstract

The Push-to-Treat Irrigation Gun can be developed through several operating architectures beyond standard suction-based injection. One important design family uses the pressure of the irrigation water itself, or gravity, to move treatment materials from a container into the spray stream. In these systems, the water line does not only deliver irrigation; it also serves as the driving force that pushes, compresses, dissolves, or carries fertilizers, microbes, soap, or other treatment materials. This article presents a structured concept for water-pressure-driven and gravity-assisted cartridge architectures, including piston systems, diaphragm systems, inner-pouch cartridges, wash-through dilution chambers, and elevated gravity-fed reservoirs. These approaches may offer practical, low-energy, and scalable alternatives for agricultural, horticultural, and household applications.

Introduction

Most hose-end treatment devices rely on suction, venturi flow, or active pumping. These are valid approaches, but they are not the only ones. Another strong engineering path is to use the irrigation water itself as the motive force acting on the treatment container.

In such systems, the water can press on a piston, deform a flexible membrane, collapse an inner pouch, or flow into a chamber that dissolves and washes out the active material. In other versions, gravity assists the downward flow of treatment material from an elevated container into the irrigation path.

This design logic is important because it may simplify operation, reduce the need for electrical or mechanical pumps, and open new possibilities for cartridge-based dosing. It may also allow the Push-to-Treat Irrigation Gun to support multiple types of materials, including liquid fertilizers, microbial suspensions, soap solutions, soluble powders, or cleaning agents.

The purpose of this article is to define this family of architectures clearly and show how it can be used as part of the broader Push-to-Treat Irrigation Gun concept.

Core Design Principle

The main principle is simple: the irrigation water is not only the carrier stream. It is also part of the actuation system.

This can happen in several ways:

the water pushes on the container from one side
the water enters an outer chamber and compresses an inner treatment chamber
the water enters a cartridge and gradually dissolves or washes out the contents
the water stream assists gravity-fed movement from an elevated reservoir

This family of systems can be divided into two main categories:

Separated-pressure systems
Water applies pressure to the treatment material through a barrier or structure, without directly mixing into the whole concentrate reservoir.
Direct-contact wash-through systems
Water enters the treatment chamber itself, dissolves or dilutes the material, and carries it onward.

A third related category is:

Gravity-assisted systems
The treatment material is positioned above the mixing point and flows downward, sometimes with water helping entrainment or transport.

Architecture 1: Piston-Separated Water Pressure Cartridge

Concept

In this architecture, the treatment cartridge contains two internal zones separated by a movable piston. One side is the water-pressure chamber, and the other side contains the treatment material. When irrigation water enters the pressure side, it pushes the piston forward. The piston then pushes the treatment material out through its own outlet.

How it works

irrigation water enters the pressure chamber
water pressure drives the piston forward
piston displaces fertilizer, soap, or treatment liquid
treatment exits through a dedicated outlet
the material then joins the spray path or mixing chamber

Advantages

This architecture provides clean separation between water and treatment. It does not require an electric pump, and it can work in different orientations because the motion is pressure-driven rather than gravity-dependent. It also allows a controlled mechanical dosing principle if the piston travel and outlet dimensions are properly designed.

Applications

This is suitable for liquid fertilizers, cleaning agents, liquid biostimulants, and other materials that should remain separated from the driving water until final injection.

Architecture 2: Flexible Diaphragm or Membrane Cartridge

Concept

Instead of using a rigid piston, the cartridge contains a flexible diaphragm or deformable membrane that separates the water-pressure side from the treatment side. Water pressure bends or pushes the membrane, which in turn pushes the treatment material out.

How it works

irrigation water enters one chamber
pressure deforms the membrane
membrane compresses the treatment chamber
treatment exits through a separate outlet
the material enters the downstream spray or mixing path

Advantages

This system can be simpler than a sliding piston in some designs because it reduces friction surfaces and moving seals. It may also be easier to make as a sealed replaceable cartridge. Since the water and treatment remain separated, it is useful for materials that must not be pre-diluted or contaminated.

Applications

This architecture can be suitable for fertilizers, detergents, bio-inputs, and replaceable consumer cartridges.

Architecture 3: Bag-in-Container or Inner-Pouch Compression System

Concept

This architecture uses an inner flexible pouch or sub-container placed inside a rigid outer cartridge. The treatment material is stored in the inner bag. Irrigation water enters the space between the rigid shell and the inner pouch. As that space fills with pressurized water, the pouch is compressed, and its contents are forced out.

How it works

outer cartridge shell remains rigid
inner pouch holds treatment material
irrigation water enters the outer pressure space
the pouch collapses under pressure
treatment exits through a dedicated line

Why it is important

This design strongly matches the idea of a sub-container inside the container. It is one of the clearest realizations of a water-driven cartridge system. The water itself becomes the pressure source, while the treatment remains protected inside the inner pouch.

Advantages

The system allows good separation between carrier water and treatment material. It can work whether the cartridge is above, below, or beside the gun, depending on the outlet design and pressure management. It may also allow easy replacement of treatment pouches without replacing the outer hardware.

Applications

This is especially attractive for modular cartridges, premium refill systems, concentrated liquids, and products where residue separation matters.

Architecture 4: Direct Water Flood or Wash-Through Cartridge

Concept

In this version, water enters the treatment chamber itself rather than acting through a barrier. It washes through the contents, dissolving, diluting, suspending, or carrying them outward.

How it works

irrigation water enters the treatment chamber
water dissolves, mixes, or mobilizes the material
the resulting solution exits through the spray path
concentration changes over time depending on product form and flow

Variants

This design may be used with:

liquid concentrates
powders
crystals
tablets
gels
soluble pellets

Water entry can be from the top, bottom, or side. Internal baffles or swirl channels may help wash the contents more evenly.

Advantages

This design may be simple and low-cost. It can also support solid or semi-solid treatment formats, which are harder to handle in some pump systems.

Limitations

It may provide less precise dosing than separated-pressure systems, especially if the material dissolves progressively. It may also be less suitable for delicate microbes if high turbulence or prolonged wet storage damages viability.

Applications

This is useful for simple fertigation products, dissolvable cartridges, soap inserts, or low-cost garden systems.

Architecture 5: Gravity-Fed Elevated Reservoir

Concept

In this architecture, the treatment reservoir is placed above the gun or above the mixing point, allowing the contents to flow downward by gravity. The irrigation water stream may simply carry the descending liquid onward, or a small valve may meter its entrance.

How it works

treatment reservoir is positioned above the mixing zone
a valve opens the outlet path
gravity causes the material to flow downward
irrigation water mixes with or carries the material

Advantages

This architecture is mechanically simple and does not require the water to enter the treatment chamber as a pressure source. In some bench-mounted, greenhouse, or backpack-supported configurations, gravity can be a useful assistive force.

Limitations

Pure handheld operation at changing angles may make gravity systems less reliable unless the reservoir is mounted in a controlled orientation.

Applications

This may be useful in fixed-position or semi-fixed systems, greenhouse benches, or specialized top-mounted product versions.

Architecture 6: Gravity Plus Water-Assisted Pickup

Concept

This is a hybrid between gravity feed and water-induced entrainment. The treatment material flows downward from an elevated container, while the irrigation water stream helps pull, carry, or further meter it into the output path.

How it works

container is positioned above the pickup zone
treatment begins descending under gravity
moving irrigation water helps entrain the descending liquid
a valve or channel controls rate

Advantages

This can give more flexibility than pure gravity feed and may allow softer handling of some materials. It may also improve consistency compared with gravity alone.

Applications

This can be useful where some gravitational flow is available but water assistance is needed to stabilize output.

Architecture 7: Water-Filled Outer Chamber with Replaceable Inner Capsules

Concept

A more modular version of the inner-pouch or separated-pressure concept uses a reusable gun body and outer pressure shell, while the treatment itself comes in replaceable internal capsules. Water enters the outer shell and compresses the capsule, or acts through a membrane structure integrated into the capsule.

Benefits

This can support a retail cartridge system with:

fertilizer capsules
microbial capsules
soap capsules
cleaning capsules

Different capsules may be optimized for different materials while using the same basic gun platform.

Commercial significance

This architecture could become a strong product ecosystem because it supports reusable hardware with consumable cartridges.

Orientation Possibilities: Up, Down, or Side

One of the useful aspects of these systems is that the container does not need to be restricted to only one position.

Top-mounted

A top-mounted cartridge may support gravity-assisted flow or simpler refill access.

Bottom-mounted

A bottom-mounted cartridge can help maintain a compact handheld form, especially if pressure or diaphragm systems are used.

Side-mounted

A side-mounted cartridge can improve balance or allow dual-cartridge designs, for example one side for plant treatment and one side for soap or cleaning agents.

The best orientation depends on the selected mechanism. Gravity-only systems are more sensitive to orientation. Piston, diaphragm, and pressure-compression systems are generally more flexible.

Comparison of Main Water-Driven Concepts

Separated-pressure systems

Examples:

piston-separated cartridge
diaphragm cartridge
bag-in-container system

These are cleaner, more controlled, and better when separation matters.

Direct-contact systems

Examples:

wash-through cartridge
dissolving chamber
soluble insert system

These are simpler and may be more suitable for low-cost models or soluble products.

Gravity-assisted systems

Examples:

top reservoir feed
gravity plus water pickup

These are elegant in the right format, especially where position is controlled.

Advantages of Water-Pressure and Gravity Architectures

These architectures offer several benefits:

they reduce the need for electric pumps
they may simplify the device
they can support replaceable cartridges
they allow different mounting positions
they open the door to solid, liquid, gel, or pouch-based product formats
they can improve separation between irrigation water and stored treatment material
they fit well with a modular product family

They also expand the intellectual and engineering range of the Push-to-Treat Irrigation Gun concept.

Design Challenges

These systems also bring challenges that must be solved through engineering:

sealing between water and treatment chambers
prevention of leakage
controlled dosing consistency
resistance to fertilizers, microbes, soaps, and detergents
cleaning and reusability
compatibility with different viscosities
backflow protection into the water line

If cleaning chemicals and plant treatments are both supported, separation protocols or dedicated cartridges become especially important.

Best Use Cases

These architectures may be useful in:

greenhouse fertigation
orchard spot treatment
balcony and urban gardening
household outdoor cleaning
nursery tray sanitation
low-power field kits
educational or NGO agriculture projects

Some versions are better for premium reusable systems, while others are suitable for simpler consumer tools.

Strategic Product Development Path

A practical product family could be developed in stages:

Entry version

Direct wash-through cartridge or simple gravity-assisted feed.

Mid-level version

Piston or diaphragm-separated cartridge.

Premium version

Inner-pouch modular cartridge with selector logic or dual-use plant-and-cleaning support.

Advanced version

Smart cartridge recognition combined with water-pressure actuation.

This staged path would allow the Push-to-Treat concept to evolve from simple tools into a broader platform.

Conclusion

The Push-to-Treat Irrigation Gun can be designed not only around suction and pumping, but also around water-pressure-driven and gravity-assisted cartridge systems. In these architectures, the irrigation water itself becomes the motive force acting on the treatment reservoir, either by pressing through a piston, diaphragm, or inner pouch, or by entering and washing through the material directly. In other versions, gravity helps the material descend into the water path.

These concepts are practical, technically meaningful, and commercially valuable. They enlarge the design possibilities of the Push-to-Treat system and strengthen it as a flexible platform for fertilizers, microbes, soil treatments, soaps, and cleaning materials.

This makes the Push-to-Treat Irrigation Gun not only a hose-end sprayer, but a broader family of cartridge-actuated treatment tools built around the intelligent use of water pressure and gravity.

Legal and Authorship Notice

The concepts presented in this article, including water-pressure-driven cartridge systems, piston-separated treatment reservoirs, membrane-based treatment cartridges, inner-pouch compression systems, wash-through cartridges, and gravity-assisted architectures for the Push-to-Treat Irrigation Gun, are published here as original conceptual work by Ronen Kolton Yehuda (MKR: Messiah King RKY).

This article serves as a public declaration of authorship and conceptual innovation for documentation, intellectual property positioning, and professional reference.

Technical Article: Hybrid Push-to-Treat Irrigation Gun

A Dual-Mode Hose-End Sprayer for Fertigation and Cleaning
By Ronen Kolton Yehuda (Messiah King RKY), 2025

1. Abstract

The Hybrid Push-to-Treat Irrigation Gun (PIG-H) is a hose-end device engineered to handle two traditionally separate tasks: plant treatment (fertilizers, bio-agents, foliar sprays) and cleaning/sanitization (detergents, high-pressure water).
This article details the system’s architecture, operational modes, material specifications, and practical applications.

2. Introduction

Growers and gardeners require both fertigation equipment and cleaning sprayers. Using the same tool for both can cause cross-contamination—microbial agents may be killed by detergent residues, while fertilizers can clog cleaning jets.

The Hybrid Push-to-Treat Gun introduces a dual-use solution:

Switchable single-cartridge model – requires rinse and cartridge swap.
Dual-cartridge model – independent tanks with a selector valve.

This design reduces costs, simplifies workflows, and ensures safety.

3. System Architecture

Core Components

Universal Hose Connector: ¾″ GHT/NPT/BSP; brass-reinforced polymer.
Cartridge(s): 200–1000 ml refillable containers, transparent, color-coded (green for plant inputs, red for cleaning agents).
Selector Valve/Trigger: Enables instant mode change.
Mixing Chamber: Antimicrobial polypropylene, turbulent geometry for homogenization.
Adjustable Nozzle: Mist/cone patterns for plants; jet/stream for cleaning.
Backflow Protection: Spring-loaded check valve isolates water source.

4. Modes of Operation

4.1 Plant Treatment Mode

Cartridge contains fertilizers, compost tea, or microbial inoculants.
Trigger opens suction port → solution drawn at fixed ratio (1:50–1:300).
Output options: mist (foliar), shower (roots), cone (soil).
Smooth flow channels (≥2 mm) protect live microbes.

4.2 Cleaning Mode

Cartridge holds detergents or sanitizers (or removed for water-only spray).
Selector switch directs flow to high-pressure nozzle.
Output options: jet/stream for trays, tools, patios, or irrigation lines.
Ceramic/stainless nozzle tips resist abrasion from detergents.

5. Material Specifications

Component	Material	Benefit
Housing	ABS + TPE overmold	Impact resistance, ergonomic grip
Cartridges	Tritan™ copolyester / HDPE	Transparent, reusable, chemical-resistant
Trigger Valve	Stainless steel + reinforced PP	Corrosion-proof, durable
Seals & Gaskets	FKM (Viton®) elastomer	Resistant to acids, detergents, fertilizers
Mixing Chamber	Antimicrobial polypropylene	Prevents biofilm buildup
Nozzle Assembly	POM / Ceramic insert	Wear-resistant, supports high pressure

6. Operational Protocols

Single Cartridge Model:
1. Apply treatment → flush with water (30–60 s).
2. Replace cartridge with detergent → switch to cleaning.
Dual Cartridge Model:
1. Dedicated Tank A (plant) + Tank B (detergent).
2. Selector valve toggles instantly; no flush required.
Optional sterilization with hot water (60 °C) or UV before reuse.

7. Applications

Greenhouses: Fertilize seedlings → sanitize trays.
Orchards: Inoculate trees → rinse pruning tools.
Urban Gardening: Fertilize balcony plants → wash balcony floor.
Field/NGO Projects: Multi-use sprayer where equipment is limited.

8. Advantages

Efficiency: One tool, two roles.
Safety: Prevents chemical cross-over.
Durability: Resistant to fertilizers, microbes, detergents.
Sustainability: Refillable cartridges reduce plastic waste.

9. Patentability Considerations

Potential claims include:

Dual-mode sprayer with microbial-safe and detergent-safe pathways.
Modular cartridge + nozzle swap system.
Selector-based dual-cartridge mechanism with independent tubing.

10. Conclusion

The Hybrid Push-to-Treat Irrigation Gun is a technical innovation that merges fertigation and cleaning in one device. By offering both a swap-and-rinse model and a dual-cartridge selector model, it ensures flexibility, safety, and efficiency for gardeners, farmers, and greenhouse operators.

This dual-use sprayer represents a new standard in irrigation technology: practical, sustainable, and ready for both agricultural and domestic markets.

# Push-to-Treat Irrigation Gun: Dual-Use Innovation for Plant Care and Cleaning

*By Ronen Kolton Yehuda (Messiah King RKY), June 2025*

---

## 🔍 Abstract

The Push-to-Treat Irrigation Gun is traditionally designed as a rechargeable, hose-end sprayer for precise delivery of fertilizers, microbes, and soil treatments during irrigation. This article introduces a powerful dual-use enhancement: the ability to switch seamlessly between **plant treatment mode** and **general cleaning mode**. This flexibility transforms the device into not only an agricultural and horticultural tool but also a practical cleaning sprayer for home, greenhouse, and field use.

---

## 🌿 Introduction

Conventional irrigation and fertigation tools are typically specialized: they either treat plants or clean surfaces, but rarely both. The Push-to-Treat Irrigation Gun breaks this barrier by enabling **on-demand treatment injection** when needed and functioning as a **regular high-pressure sprayer** for rinsing and cleaning when the cartridge is disconnected or bypassed.

This dual functionality extends its value to gardeners, farmers, greenhouse operators, and homeowners—making it a **2-in-1 sustainable water tool**.

---

## 🔧 Dual-Use Functional Overview

### 1. **Plant Treatment Mode**

* **Refillable Cartridge (200–1000 ml):** Holds fertilizers, microbial inoculants, compost tea, or foliar sprays.

* **Push-to-Treat Activation:** User presses the trigger or button to inject treatment into the water stream.

* **Internal Mixing Chamber:** Ensures even distribution before reaching soil or foliage.

* **Adjustable Spray Nozzle:** Supports mist, cone, stream, or shower patterns for targeted application.

👉 Use Case Examples:

* Feeding vegetables with liquid NPK + microbes

* Applying biocontrol sprays in greenhouses

* Spot-treating fruit trees with iron chelates or foliar nutrition

---

### 2. **General Cleaning Mode**

* **Dry Mode:** Operates with the cartridge removed or sealed.

* **High-Pressure Water Spray:** Functions as a regular sprayer for rinsing tools, pots, or greenhouse trays.

* **Optional Detergent/Soap Cartridge:** Allows cleaning of garden equipment, surfaces, or even patios.

* **Non-Slip Ergonomic Grip:** Enables extended cleaning tasks without fatigue.

👉 Use Case Examples:

* Washing dirt and debris from greenhouse floors

* Cleaning pots, trays, and irrigation lines

* Rinsing tools, machinery, or even vehicles

* Household cleaning of patios, windows, or outdoor furniture

---

## ⚙️ Technical Design for Dual Use

| Component | Plant Treatment Function | Cleaning Function |

| ------------------- | ----------------------------------------------- | ------------------------------------------ |

| Cartridge | Stores fertilizers, microbes, biocontrol agents | Can be detached or filled with detergent |

| Trigger Valve | Push-to-dose injection control | Opens water spray flow only |

| Mixing Chamber | Blends nutrients with irrigation water | Serves as turbulence zone for strong spray |

| Spray Nozzle | Mist, cone, or flat patterns for plants | Jet or shower pattern for cleaning tasks |

| Backflow Protection | Prevents contamination of water supply | Ensures safe use in both modes |

---

## 🌱 Sustainability and Efficiency

* **One Device, Multiple Roles:** Reduces need for separate sprayers or cleaning guns.

* **Water Conservation:** Selective dosing minimizes waste.

* **Reusable Cartridges:** Supports both eco-friendly fertigation and detergent use.

* **Durability:** Food-grade, chemical-resistant materials handle both biologicals and cleaners safely.

---

## 🧩 Market Potential

The **dual-use design** broadens the appeal of the Push-to-Treat Gun beyond agriculture:

* **Farmers & Gardeners:** Precision fertigation tool.

* **Greenhouse Operators:** Plant care + equipment cleaning.

* **Homeowners:** Watering tool + outdoor cleaning sprayer.

* **NGOs & Development Projects:** Multi-purpose device for low-resource settings.

---

## ✅ Conclusion

The Push-to-Treat Irrigation Gun with **dual-use capability** represents a **paradigm shift** in irrigation and water tool design. It is no longer just a fertigation sprayer—it is also a reliable cleaning companion for everyday tasks. With the ability to switch instantly between **plant treatment** and **general cleaning**, this device empowers users to save time, reduce waste, and get more value from a single compact tool.

It is **the future of irrigation meets utility cleaning**, bringing **precision, portability, and practicality** into one hand-held innovation.

---

> **Push-to-Treat with Dual Use: Plant Treatment Gun & General Cleaning**

---

### **Model 1 – Technical Innovation Article**

**Title:** Push-to-Treat Irrigation Gun: Dual-Use System for Plant Treatment and Cleaning

* **Abstract** – Introduce the concept of a dual-use irrigation gun

* **Introduction** – The gap between fertigation tools and cleaning sprayers

* **Dual Functionality**

* Plant Treatment Mode (fertilizer, microbes, conditioners)

* Cleaning Mode (wash tools, surfaces, greenhouses, patios)

* **Design Features Enabling Both Uses**

* Interchangeable nozzles

* Cartridge on/off function

* Backflow protection

* **Use Case Scenarios**

* Agriculture: fertigation + greenhouse wash

* Urban gardening: compost tea + balcony cleaning

* Orchard care: microbial inoculation + equipment rinsing

* **Conclusion** – A practical 2-in-1 irrigation and cleaning system

---

### **Model 2 – Sustainability & Efficiency Focus**

**Title:** Smarter Farming, Cleaner Tools: The Dual Role of the Push-to-Treat Irrigation Gun

* **Abstract** – The dual use in the context of resource-saving

* **Problem Statement** – Wasteful overuse of fertilizers & separate cleaning systems

* **Solution** – One device, two modes (treatment & cleaning)

* **Environmental Benefits**

* Reduced chemical runoff

* Reduced water waste in cleaning

* **Practical Benefits**

* Faster workflow for growers

* Less equipment needed

* **Market Potential** – Ideal for sustainable farms, schools, and smallholders

---

### **Model 3 – Product Review / Consumer Guide**

**Title:** One Gun, Two Uses: Why the Push-to-Treat Irrigation Gun is Perfect for Gardeners and Farmers

* **Introduction** – Position as a multi-task tool

* **Feature Breakdown**

* Plant treatment function

* General cleaning function

* **Advantages for Home Gardeners**

* **Advantages for Professional Growers**

* **Ease of Use & Maintenance**

* **Verdict** – Cost-effective, practical, eco-friendly

---

### **Model 4 – Patent/Innovation Angle**

**Title:** Dual-Use Irrigation Gun: Patentable Innovation for Plant Treatment and Cleaning

* **Abstract** – Highlight uniqueness

* **Novelty in Design** – Push-trigger dosing + dual cleaning

* **Existing Market Gaps** – Sprayers vs. cleaners

* **Patentable Claims** – Dual mode operation, microbial compatibility, sterilization safety

* **Commercial Outlook** – Potential for retail, NGO, and professional adoption

* **Conclusion** – Positioned as a transformative multi-use irrigation device

---

# Push-to-Treat Irrigation Gun with Dual Use

**A Rechargeable Hose-End Device for Plant Treatment & General Cleaning**

*By Ronen Kolton Yehuda (Messiah King RKY), June 2025*

---

## 🔍 Abstract

This article presents the **Dual-Use Push-to-Treat Irrigation Gun (PIG-DU)**, a next-generation hose-end sprayer that combines two essential agricultural and horticultural tasks: **precision plant treatment** (fertilizer, microbial inoculation, soil conditioners) and **general cleaning** (tools, surfaces, greenhouse benches, nursery trays). By merging fertigation and cleaning into a single push-activated device, this innovation maximizes efficiency, reduces water and chemical waste, and simplifies workflows for both home gardeners and professional growers.

---

## 🌿 Introduction

Traditional fertigation devices are designed only for nutrient or microbial application, while cleaning tasks require entirely separate tools—often high-pressure washers or manual sprayers. This separation increases costs, complicates maintenance, and wastes time.

The **Push-to-Treat with Dual Use concept** bridges this gap: a single, modular gun with **two operational modes**—**Plant Treatment Mode** and **Cleaning Mode**—controlled by interchangeable cartridges and nozzle adjustments.

---

## 🔧 System Design Overview

### 🔑 Core Components

* **Hose Connector (¾″ GHT/NPT/BSP)** – Compatible with global standards

* **Refillable Cartridge (200–1000 ml)** – For fertilizers, microbes, or detergents

* **Dual-Mode Trigger Valve**

* Mode A: Treatment injection (fertilizer, microbes, conditioners)

* Mode B: Cleaning injection (detergent, sanitizers, plain water flush)

* **Mixing Chamber** – Turbulence ensures even solution blending

* **Nozzle Assembly** – Adjustable for stream, mist, cone, or high-flow jet

* **Check Valves & Filters** – Prevent backflow and clogging in both modes

---

## ⚙️ Dual Functionality

### 1. **Plant Treatment Mode**

When the **treatment trigger** is pressed:

* Fertilizer or microbial solution is suctioned from the cartridge

* Solution is homogenized inside the mixing chamber

* Output is gentle enough for **root zone irrigation or foliar spraying**

**Applications:**

* Fertilizers (liquid NPK, compost tea, humic acid)

* Microbial agents (Trichoderma, Bacillus, mycorrhizae)

* Soil enhancers (enzymes, kelp extract, biocontrols)

**Design Requirements:**

* Smooth flow channels (≥2 mm bore) to protect microbes

* Food-grade plastics (HDPE, Tritan™, EPDM seals)

* Optional UV-resistant cartridge for bio-sensitivity

---

### 2. **General Cleaning Mode**

Switching to **cleaning mode** (cartridge flush or detergent-filled):

* Flow is redirected to a high-pressure jet nozzle

* Detergent or sanitizer can be injected via the same cartridge system

* Adjustable output allows **rinsing, scrubbing, or surface sanitation**

**Applications:**

* Washing greenhouse benches, trays, or irrigation lines

* Rinsing orchard equipment, garden tools, sprayers

* Cleaning patios, walkways, and farm surfaces

**Design Requirements:**

* Detachable **high-pressure nozzle insert**

* Chemical-resistant seals (for detergents/cleaners)

* Removable cartridge for safe sanitization

---

## 🧪 Internal Mechanism

**Operational States:**

| ---- | ------------------ | -------------------- | ---------------------------------- |

| A | ❌ | – | Clean water only |

| B | ✅ | ❌ | Clean water only (cartridge ready) |

| C | ✅ | ✅ | Plant treatment injection |

| D | ✅ | 🔄 (Switch to Clean) | Cleaning detergent/jet spray |

**Mixing Process:**

1. Water enters inlet chamber under pressure (2–6 bar).

2. Trigger opens suction port.

3. Cartridge contents drawn at preset ratio (1:50–1:300).

4. Internal turbulence zone homogenizes mix.

5. Interchangeable nozzle defines output mode.

---

## 🔩 Material Specifications

| Component | Material | Reason |

| --------------- | ----------------- | ---------------------------------- |

| Gun Housing | ABS/Polycarbonate | Durable, UV-resistant |

| Cartridge | PET/HDPE | Safe for fertilizers & detergents |

| Seals & Gaskets | EPDM/Silicone | Resistant to bio & chemical inputs |

| Springs | Stainless Steel | Anti-corrosion |

| Filters | Nylon Mesh | Prevent clogging, washable |

---

## 🌱 Use Case Scenarios

### Agriculture / Greenhouses

* Apply **microbes or fertilizers** directly to plant roots

* Clean **propagation trays and irrigation lines** afterward

### Orchards

* Fertilize or inoculate young trees

* Rinse tools and sprayers on-site with the same device

### Urban Gardening

* Fertilize potted plants or balconies

* Clean balcony floors and garden tools

### Educational / NGO Projects

* Teach **sustainable fertigation** and **hygienic farming** in one tool

* Reduce cost and simplify logistics in field kits

---

## 🧼 Cleaning & Maintenance Advantages

* **Cartridge flush mode** prevents buildup after bio treatments

* No need for separate sprayers or pressure washers

* Backflow prevention keeps water lines clean

* Easy disassembly for sterilization (hot water or UV cleaning)

---

## 🛠 Optional Smart Features

* **Digital Mode Selector** – Switch between treatment and cleaning electronically

* **LCD Display** – Monitor flow rate, dosage, or detergent level

* **Bluetooth Sync** – Log both fertigation and sanitation cycles

* **Dual-Cartridge Version** – One for plant inputs, one for cleaning agents

---

## 🔐 Patentability Assessment

**Novel Elements Likely Patentable:**

* Dual-mode push-trigger irrigation gun (plant treatment + cleaning)

* Modular nozzle for **fertigation + high-pressure cleaning**

* Refillable microbial-safe cartridge adaptable for detergents

This dual-use concept has not been addressed in most hose-end sprayers (which focus only on either fertigation or cleaning).

---

## 🔚 Conclusion

The **Push-to-Treat Dual-Use Irrigation Gun** represents a **2-in-1 revolution** in small-scale irrigation and farm maintenance. By combining **precision fertigation** with **general cleaning capability**, it provides growers with a flexible, portable, and sustainable solution.

This dual-use design not only simplifies workflows but also reduces the number of tools needed in the field—making it ideal for home gardens, greenhouses, orchards, and development projects worldwide.

---

# Push-to-Treat Irrigation Gun with Dual Use

**A Rechargeable Hose-End Device for Plant Treatment & General Cleaning**

*By Ronen Kolton Yehuda (Messiah King RKY), 2025*

---

## 🔍 Abstract

This article presents the **Dual-Use Push-to-Treat Irrigation Gun (PIG-DU)**, a next-generation hose-end sprayer that combines **precision plant treatment** with **general cleaning capability**. While the functional design remains the same, this version introduces **enhanced materials** engineered for greater **durability, chemical resistance, and microbial safety**, making it suitable for both agricultural and domestic applications.

---

## 🌿 Introduction

Most fertigation and irrigation sprayers are limited by material wear, microbial incompatibility, or chemical corrosion. The upgraded Push-to-Treat Dual-Use Gun solves these limitations by integrating **new generation polymers and alloys** that extend the life cycle, enhance cleaning safety, and ensure compatibility with both **biological treatments** and **detergents/sanitizers**.

---

## 🔧 System Design Overview

### 🔑 Core Components

* **Universal Hose Connector (¾″ GHT/NPT/BSP)** – Reinforced brass-plated polymer for strength and corrosion protection.

* **Refillable Cartridge (200–1000 ml)** – Made from **Tritan™ copolyester**, a BPA-free, transparent, and chemical-resistant polymer.

* **Dual-Mode Trigger Valve** – Stainless steel + polymer hybrid for extended cycle durability.

* **Mixing Chamber** – Polished polypropylene (PP) with anti-microbial additive coating.

* **Nozzle Assembly** – High-grade acetal (POM) with optional ceramic tip inserts for abrasion resistance.

* **Seals & Gaskets** – FKM (Viton®) elastomer for enhanced detergent and microbial compatibility.

---

## ⚙️ Dual Functionality

### 1. **Plant Treatment Mode**

* Cartridge filled with fertilizer, microbes, or bio-stimulants.

* Flow channels engineered with **≥2 mm smooth bore Tritan™ tubing** to prevent microbial shear stress.

* Gentle mist and cone patterns reduce foliar burn and enhance nutrient uptake.

### 2. **General Cleaning Mode**

* Detergent-ready cartridge with FKM seals to resist alkali/acid cleaners.

* High-pressure jet nozzle tipped with **ceramic or stainless steel** for long-term abrasion resistance.

* Ergonomic ABS + TPE (rubberized) grip designed for prolonged cleaning use.

---

## 🧪 Internal Mechanism

**Mixing Process:**

1. Water enters inlet chamber (reinforced PP housing) at 2–6 bar.

2. Dual-mode trigger opens suction port with stainless spring support.

3. Cartridge content drawn at controlled ratio (1:50–1:300).

4. Mixing chamber (antimicrobial PP) homogenizes solution.

5. Output nozzle (POM/ceramic) delivers selected spray pattern.

---

## 🔩 Material Specifications

| Component | Updated Material | Advantage |

| ------------------ | ------------------------------- | ----------------------------------------------------------------- |

| Gun Housing | ABS + TPE overmold | Impact resistance + comfortable grip |

| Cartridge | Tritan™ Copolyester | Transparent, BPA-free, resistant to fertilizers & detergents |

| Trigger Valve Body | Stainless Steel + Reinforced PP | Long cycle life, corrosion resistant |

| Seals & Gaskets | FKM (Viton®) Elastomer | High chemical resistance (fertilizers, detergents, sanitizers) |

| Springs | Stainless Steel 316L | Corrosion-proof, compatible with sanitizing agents |

| Mixing Chamber | Antimicrobial PP | Prevents microbial buildup, easy sterilization |

| Spray Nozzle | POM (Acetal) + Ceramic Insert | Wear resistance, smooth flow, chemical compatibility |

| Hose Connector | Brass-Plated Polymer Composite | Rugged, prevents leaks, withstands outdoor UV & chemical exposure |

---

## 🌱 Use Case Scenarios

* **Agriculture/Greenhouses:** Fertilizer injection + cleaning propagation trays.

* **Orchards:** Microbial inoculation + washing tools in the field.

* **Urban Gardening:** Compost tea application + balcony cleaning.

* **NGO/Low-Resource Settings:** One tool for fertigation and hygiene.

---

## 🧼 Cleaning & Maintenance Advantages

* Tritan™ and Viton® resist harsh detergents.

* Antimicrobial polypropylene prevents biofilm growth.

* Ceramic nozzles withstand abrasive cleaners and sandy water.

* All parts designed for **easy disassembly and sterilization** (hot water or UV).

---

## 🛠 Optional Smart Features

* **Dual-Cartridge Upgrade:** One Tritan™ cartridge for fertigation, one for cleaning detergent.

* **Smart Sensors:** Flow monitoring with corrosion-proof stainless electrodes.

* **Modular Grip Panels:** Replaceable rubberized ABS/TPE handles for hygiene in multi-user environments.

---

## 🔐 Patentability Assessment

**Material Innovation Claims Possible:**

* Use of **Tritan™ and Viton®** in dual-use irrigation sprayers.

* Ceramic-reinforced nozzle for both **microbial fertigation and detergent cleaning**.

* Antimicrobial PP mixing chamber for bio-input safety.

---

## 🔚 Conclusion

The **material upgrade** of the Push-to-Treat Dual-Use Irrigation Gun transforms it into a **next-generation 2-in-1 device** capable of long-lasting operation in both plant care and cleaning contexts. With enhanced polymers, ceramic nozzles, and advanced elastomers, it achieves:

* **Higher durability** under farm and household conditions

* **Superior chemical resistance** to fertilizers, microbes, and detergents

* **Microbial safety** for sensitive bio-inoculants

This makes it a **truly universal sprayer**, serving as both a **precision fertigation gun** and a **rugged cleaning tool**.

---

---

# Push-to-Treat Irrigation Gun with Dual Use

**A Rechargeable Hose-End Device for Plant Treatment & General Cleaning**

*By Ronen Kolton Yehuda (Messiah King RKY), 2025*

---

## 🔍 Abstract

The **Dual-Use Push-to-Treat Irrigation Gun (PIG-DU)** is a modular sprayer that combines **precision plant treatment** with **general cleaning**. Unlike traditional sprayers, it introduces a **replaceable cartridge and nozzle system**, ensuring that plant inputs (fertilizers, microbes, soil enhancers) and cleaning agents (detergents, sanitizers) remain separate. Between uses, the unit requires **simple washing or cartridge replacement**, guaranteeing safety, performance, and cross-contamination prevention.

---

## 🌿 Introduction

Standard irrigation sprayers are single-purpose: either fertigation tools or cleaning sprayers. Using the same sprayer for both often causes contamination—fertilizers may crystallize in cleaning mode, or detergents can harm sensitive microbes.

The **Push-to-Treat Dual-Use system** solves this problem with **dedicated modular cartridges and nozzles** designed for quick swapping and washing. Users can move safely from **plant treatment tasks** to **cleaning tasks** without compromising plant health or tool hygiene.

---

## 🔧 System Design Overview

### 🔑 Core Components

* **Universal Hose Connector** – Brass-plated polymer, corrosion resistant

* **Refillable Cartridges (200–1000 ml)** – Separate units for fertilizers/microbes vs. detergents

* **Dual-Mode Trigger Valve** – Push-to-dose dosing or cleaning activation

* **Mixing Chamber** – Antimicrobial polypropylene, easy to rinse

* **Replaceable Nozzle Assembly** – Plant nozzle vs. cleaning jet nozzle

* **Check Valves & Filters** – Prevent backflow into the water source

---

## ⚙️ Dual Functionality

### 1. **Plant Treatment Mode**

* Cartridge filled with fertilizers, compost tea, or microbial inoculants

* Dedicated **green-coded plant nozzle** (mist/cone patterns)

* Smooth internal bores (≥2 mm) protect live microbes

* After use: **flush with clean water** and **remove cartridge for washing**

### 2. **General Cleaning Mode**

* Cartridge filled with detergents or sanitizers

* Dedicated **red-coded cleaning nozzle** (jet/stream patterns)

* High-pressure ceramic insert withstands abrasive cleaning

* Before returning to plant use: **swap nozzle + wash mixing chamber**

---

## 🧪 Operational Protocol

To ensure safe switching between modes:

1. **Detach the current cartridge** (fertilizer/microbial OR detergent).

2. **Flush gun with clean water** for at least 30–60 seconds.

3. **Replace nozzle** (plant spray → green / cleaning jet → red).

4. **Attach appropriate cartridge** for next use.

5. **Optional sterilization**: Rinse cartridges with hot water (60°C) or mild sanitizer before reuse.

This protocol prevents:

* Fertilizer/detergent residue crossover

* Killing of beneficial microbes by detergents

* Plant damage from residual chemicals

---

## 🔩 Material Specifications

| Component | Material | Advantage |

| --------------- | -------------------------------------------- | --------------------------------------------------------- |

| Gun Housing | ABS + TPE overmold | Impact resistance + comfortable grip |

| Cartridges | Tritan™ copolyester (separate sets) | Transparent, reusable, safe for fertilizers or detergents |

| Trigger Valve | Stainless Steel + Reinforced PP | Long cycle life, corrosion resistant |

| Seals & Gaskets | FKM (Viton®) elastomer | Resistant to fertilizers + detergents |

| Mixing Chamber | Antimicrobial polypropylene | Prevents microbial buildup, easy sterilization |

| Spray Nozzles | POM (plant use) / Ceramic Jet (cleaning use) | Dedicated nozzles avoid residue crossover |

---

## 🌱 Use Case Scenarios

* **Greenhouses:** Fertilize seedlings → swap cartridge → clean trays.

* **Orchards:** Apply microbes → flush → wash pruning tools.

* **Urban gardening:** Feed balcony plants → swap cartridge → rinse balcony floor.

* **NGO/Field projects:** Low-cost dual-use sprayer with hygiene protocol.

---

## 🧼 Cleaning & Maintenance

* Always **rinse with clean water** after each use.

* Maintain **two dedicated cartridges**: one for plant treatments, one for cleaning agents.

* Swap **nozzle assemblies** to avoid mixing spray residues.

* Cartridges and mixing chamber are **fully detachable for hot-water wash or UV sterilization**.

---

## 🛠 Optional Smart Features

* **Color-Coded Cartridge Set:** Green = plant inputs, Red = cleaning agents.

* **Smart Lock System:** Prevents accidental use of cleaning mode when plant cartridge is attached.

* **QR Code Tracking:** Maintenance and sterilization logs.

---

## 🔚 Conclusion

The **Push-to-Treat Dual-Use Irrigation Gun** is not just a sprayer—it is a **modular 2-in-1 system**. By enforcing **cartridge separation, nozzle swapping, and washing protocols**, it guarantees safe use for both plant care and cleaning.

This innovation delivers:

* **Flexibility** (fertigation + cleaning in one device)

* **Safety** (no cross-contamination)

* **Durability** (materials designed for both bio and chemical use)

The result is a **universal irrigation and cleaning tool** for farmers, gardeners, and households—practical, sustainable, and reliable.

---

# Push-to-Treat Irrigation Gun: Dual-Use Innovation for Plant Care and Cleaning

*By Ronen Kolton Yehuda (Messiah King RKY), 2025*

---

## 🌱 A Smarter Tool for Everyday Growing

Gardeners, farmers, and greenhouse operators all face the same challenge: managing plants with care while keeping equipment and workspaces clean. Traditionally, these two tasks require **separate tools**—one for fertigation and another for cleaning.

The **Push-to-Treat Irrigation Gun** changes that. This compact, hose-end device is designed to **feed plants with precision** *and* work as a **powerful cleaning sprayer**—all in one.

---

## 🔧 How It Works

The Push-to-Treat Gun operates in **two simple modes**:

### 🌿 **Plant Treatment Mode**

* A refillable cartridge is filled with fertilizers, compost tea, or microbial solutions.

* With a simple push, the treatment is injected into the water stream and delivered directly to soil or foliage.

* Adjustable spray settings allow for misting, showering, or targeted streams.

👉 Perfect for fertilizing vegetables, applying foliar sprays in greenhouses, or boosting young orchard trees.

### 🧼 **Cleaning Mode**

* Remove or swap the cartridge, and the gun switches to **pure water spraying**.

* For tougher jobs, the cartridge can hold **soap or detergent**, turning it into a cleaning sprayer.

* Strong jet settings wash trays, pots, tools, patios, or even small machinery.

👉 Ideal for rinsing greenhouse floors, cleaning gardening tools, or washing outdoor furniture.

---

## 🚿 Switching Between Modes

To keep plants safe and avoid contamination:

* Use **separate cartridges** for treatments and detergents.

* Rinse the gun with clean water when switching modes.

* Swap spray nozzles if moving from plant misting to high-pressure cleaning.

This simple routine keeps microbes alive in treatment mode and prevents harmful residues from reaching plants.

---

## 🌍 Why It Matters

The Push-to-Treat Gun is more than just convenient—it’s a step toward **sustainable water and resource use**:

* **One tool, two roles** → reduces the need for multiple sprayers.

* **Water-efficient dosing** → only delivers treatments when needed.

* **Eco-friendly materials** → reusable cartridges replace disposable bottles.

* **Time saver** → switch from plant care to cleaning in seconds.

---

## 🏡 Who Can Benefit?

* **Home Gardeners:** Fertilize plants and clean patios with one device.

* **Farmers & Greenhouses:** Streamline fertigation and sanitation tasks.

* **Urban Gardeners:** Care for balcony plants and wash outdoor spaces.

* **NGOs & Community Projects:** Provide low-cost, multipurpose tools where resources are limited.

---

## ✅ Conclusion

The **Push-to-Treat Irrigation Gun** represents a new generation of water tools—**part fertigation sprayer, part cleaning gun**. By combining both roles in one device, it saves time, reduces waste, and makes daily tasks easier for growers at every scale.

It’s not just about irrigation anymore.

It’s about **irrigation + cleaning in one push**—bringing **efficiency, safety, and sustainability** straight to your hands.

---

# Push-to-Treat Irrigation Gun: A Dual-Use Innovation for Plant Care and Cleaning

*By Ronen Kolton Yehuda (Messiah King RKY), 2025*

---

## 🌱 A Simple Idea With Wide Impact

Most gardeners, farmers, and greenhouse operators use **separate tools**: one for applying fertilizers or microbes, and another for washing trays, tools, or patios. The **Push-to-Treat Irrigation Gun** changes that by combining both into a **single compact sprayer**.

With one push, it can deliver nutrients or microbial treatments to plants. Swap the cartridge or rinse it, and it becomes a **powerful cleaning sprayer**. This simple shift saves **time, water, and equipment costs**.

---

## 🔧 From Concept to Product

The gun is designed with **two main modes**:

* **Plant Treatment Mode:** A refillable cartridge holds fertilizers, compost tea, or microbes. The nozzle delivers a gentle mist or shower for roots and leaves.

* **Cleaning Mode:** The cartridge can be filled with detergent, or removed, allowing high-pressure water jets for rinsing surfaces, tools, or greenhouses.

**Development costs** depend on the version:

* A **basic mechanical model** (no electronics) can be brought to market with modest investment, mainly for tooling and safety testing.

* A **smart version** (with sensors, dosing control, or Bluetooth logging) requires higher upfront costs but opens doors to professional and export markets.

In general, bringing such a product to commercial scale requires **hundreds of thousands of dollars** in development, testing, and tooling—typical for consumer hardware.

---

## 💰 Pricing Strategy

Because the gun is modular and useful for both homes and farms, it can be priced in **different ranges**:

* **Basic model**: Affordable for home gardeners, around **\$40–\$60** retail.

* **Professional model**: More robust, with ceramic jets and higher durability, around **\$80–\$120**.

* **Smart model**: With digital dosing or monitoring, around **\$130–\$200**.

This tiered approach ensures accessibility while leaving room for premium offerings.

---

## 🌍 Market Opportunity

The irrigation and gardening market is already large and steadily growing:

* The **agricultural sprayer market** is worth over **\$5 billion annually** and is projected to grow strongly over the next five years.

* The **home gardening tools market** is also expanding worldwide, fueled by urban gardening, greenhouse farming, and the push for sustainable tools.

A product that works in both agriculture and household contexts naturally benefits from **two overlapping markets**—making its potential larger than many single-use sprayers.

---

## 📈 Five-Year Market Value Outlook

With even **modest adoption**, the Push-to-Treat Irrigation Gun could reach:

* **Tens of thousands of units** sold in early years, mainly to home gardeners and small farms.

* **Hundreds of thousands of units** within five years if distributed through retail garden centers, farm supply stores, and online channels.

At average retail prices between **\$60 and \$100**, this translates into **annual revenues of \$30–\$60 million** within five years.

Because the product is durable and supported by **replaceable cartridges and accessories**, it can also generate **recurring revenue**, increasing its long-term value. If growth is strong, the product line could represent a **business worth \$50–100 million** in market value in its first five years.

---

## ✅ Conclusion

The **Push-to-Treat Irrigation Gun** is more than just another garden sprayer. It represents a **new category**: one device for **both plant care and cleaning**.

By cutting down the need for multiple tools, saving water, and offering affordable versions for households and professional farms, it has the potential to become a **global staple in gardening and agriculture**.

In five years, it could grow from a simple idea into a product line with a **multi-million-dollar market presence**, positioned at the crossroads of **sustainability, convenience, and innovation**.

---

# Push-to-Treat Irrigation Gun: A Smarter Way to Water, Feed, and Clean

*By Ronen Kolton Yehuda (Messiah King RKY), 2025*

---

## 🌱 What Is It?

The **Push-to-Treat Irrigation Gun** is a **dual-use hose-end sprayer** designed to make plant care and cleaning easier. With one device, you can **fertilize and protect plants** or switch to **washing and rinsing tools, patios, or greenhouses**.

It works by attaching to a regular garden hose, with a **refillable cartridge** that can hold fertilizer, compost tea, microbes, or even cleaning detergent. A simple **push-to-activate system** lets you choose when to inject treatments—or leave it off for normal spraying.

---

## 🔧 How It Works

* **Plant Treatment Mode:** Fill the cartridge with plant food, compost tea, or microbes. Push the trigger to release it into the water, delivering nutrients straight to soil or leaves.

* **Cleaning Mode:** Remove the cartridge (or fill it with soap) and the sprayer becomes a high-pressure cleaning tool for trays, pots, patios, or even small equipment.

* **Adjustable Spray Nozzle:** Switch between mist, shower, stream, or jet, depending on the task.

---

## 🌍 Why You’ll Want One

The Push-to-Treat Gun combines two everyday jobs into a single smart tool.

### ✅ Advantages for Users

* **2-in-1 Functionality:** One sprayer for **fertigation** and **cleaning**.

* **Water-Saving:** Only injects treatments when needed, reducing chemical and water waste.

* **Convenient & Portable:** Lightweight, easy to hold, and quick to switch between tasks.

* **Safe & Durable:** Built with chemical-resistant, food-grade materials for both biological inputs and detergents.

* **Cost-Effective:** Eliminates the need to buy and store multiple sprayers.

---

## 👩‍🌾 Who Can Benefit?

* **Home Gardeners:** Fertilize houseplants or vegetable gardens, then clean patios or tools.

* **Farmers & Greenhouses:** Apply nutrients or microbes to crops, then sanitize trays, irrigation lines, or benches.

* **Urban Gardeners:** Care for balcony plants and rinse outdoor spaces with one device.

* **NGOs & Development Projects:** Provide multipurpose sprayers for communities with limited resources.

---

## 🏡 Everyday Use Examples

* Feed tomatoes with compost tea → then rinse the watering trays.

* Apply microbial inoculants in greenhouses → then wash benches and pots.

* Fertilize potted plants on balconies → then clean the balcony floor.

* Water young orchard trees → then wash pruning tools.

---

## ✅ Conclusion

The **Push-to-Treat Irrigation Gun** is more than a sprayer—it’s a **smarter water tool**. By combining **plant feeding and cleaning in one compact device**, it saves time, reduces waste, and makes life easier for both home gardeners and professionals.

It’s practical, eco-friendly, and versatile—a tool you’ll reach for every day, whether you’re growing food, tending plants, or keeping your space clean.

Hybrid Push-to-Treat Irrigation Gun: One Tool, Two Purposes

By Ronen Kolton Yehuda (Messiah King RKY), 2025

🌍 Introduction

Farmers and gardeners often need two different sprayers: one to apply fertilizers or microbes to plants, and another to clean trays, pots, or tools. This is inefficient, costly, and sometimes risky when residues get mixed.

The Hybrid Push-to-Treat Irrigation Gun changes this reality. It is designed as a dual-purpose sprayer that can function as:

A plant treatment tool for fertigation and bio-input application.
A cleaning sprayer for washing and sanitizing equipment and surfaces.

🔧 How It Works

The gun is built in two possible models:

Model A – Single Cartridge with Switch & Rinse

One refillable cartridge used for either fertilizers/microbes or cleaning agents.
Between uses, the gun is flushed with clean water to avoid contamination.
Simple and affordable design.

👉 Example: Fertilize your plants in the morning, rinse the gun, then clean greenhouse trays in the afternoon.

Model B – Dual Cartridge System

Two separate tanks:
- Tank 1 for fertilizers, compost tea, or microbes.
- Tank 2 for detergents or sanitizers.
A selector switch lets the user instantly choose between plant care and cleaning mode.
Independent flow paths ensure zero cross-over.

👉 Example: While working in an orchard, you can fertilize trees and immediately wash pruning tools without changing devices.

🌱 Benefits

2-in-1 Convenience – No need for two sprayers.
Safety – Prevents accidental mixing of fertilizers and detergents.
Efficiency – Saves time in the field or garden.
Durability – Made from food-grade, chemical-resistant materials.
Sustainability – Refillable cartridges reduce waste.

🧩 Who Needs It?

Professional growers who need both fertigation and sanitation.
Greenhouse operators managing delicate crops and constant cleaning.
Home gardeners who want one tool for plants and patios.
NGO projects in low-resource areas where multi-use tools are essential.

✅ Conclusion

The Hybrid Push-to-Treat Irrigation Gun is more than a sprayer—it is a versatile water tool that unites two essential tasks in one compact design. Whether as a switch-and-rinse model or a dual-cartridge system, it guarantees safer workflows, saves equipment costs, and brings convenience to everyone from home gardeners to professional farmers.

It is not just irrigation.
It is irrigation + cleaning, made simple.

Legal & Collaboration Notice

The Push-to-Treat Irrigation Gun — including its hybrid, dual-use, and cartridge-based designs — is an original invention and publication by Ronen Kolton Yehuda (Messiah King RKY).
All system concepts, technical descriptions, and design variations (single-cartridge, dual-cartridge, and hybrid push-to-dose configurations) are part of my documented intellectual property.

This publication serves as a public declaration of authorship and innovation for intellectual property protection and legal acknowledgment.
Unauthorized replication, production, or derivative commercialization is prohibited without written consent from the inventor.

I invite ethical collaboration, licensing, investment, and manufacturing partnerships with companies, engineers, and institutions interested in developing or scaling this innovation for global agricultural and environmental benefit.

— Ronen Kolton Yehuda (Messiah King RKY)

---

Push-to-Treat Irrigation Gun: A Smart Hose-End Tool for Nutrients, Microbes, and Soil Health
