Smart Ankle & Smart Insole: A New Era in Footwear Technology

Smart Ankle & Smart Insole: A New Era in
Footwear Technology

Introduction Smart footwear is no longer a futuristic concept—it is now a rapidly evolving reality. Among the most innovative advancements in this space are smart insoles and smart ankles. These technologies bring enhanced biomechanics, real-time data analytics, and connectivity into footwear, all without relying on heating or cooling mechanisms. Instead, the focus is on precision tracking, intelligent feedback, and seamless integration with smart ecosystems.

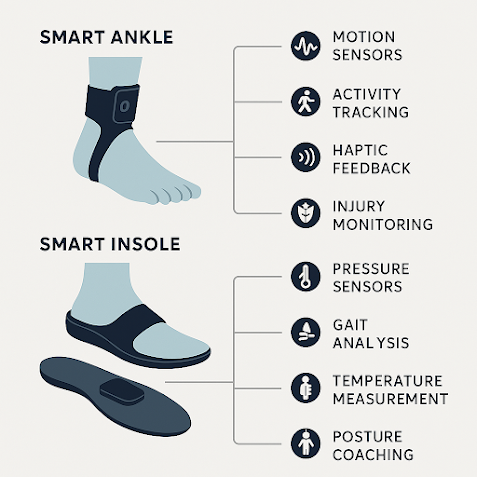

1. Core Technologies

Smart Insole

Pressure Sensors: Monitor foot pressure distribution to identify gait imbalances, posture inefficiencies, and physical fatigue.
Accelerometers & Gyroscopes: Measure motion dynamics, including step cadence, stride length, and balance.
Capacitive Sensors: Detect stance phase, helping in postural assessment and rehabilitation support.
Connectivity: Includes Bluetooth and/or Wi-Fi for wireless syncing with smart devices like smartphones, AR glasses, and health monitors.

Smart Ankle

Motion Stabilization: Uses advanced IMUs (Inertial Measurement Units) to track ankle movement with high precision.
Posture Assistance: Provides real-time alerts when misalignment is detected.
Fall Detection: Utilizes AI algorithms to identify sudden or abnormal motions and sends alerts to caregivers or emergency services.
Wearable Integration: Communicates directly with smart insoles, belts, and glasses for holistic body monitoring.

2. Features and Benefits

Autonomous SIM Integration (Optional): Enables GPS tracking and remote monitoring independently of a smartphone.
Real-Time Feedback: Delivers on-the-go insights for training, health, and rehabilitation.
Battery Optimization: Focuses on long life and lightweight form factors.
AI-Enhanced Analysis: Learns user patterns over time to provide predictive suggestions and risk alerts.

3. Applications

Fitness & Training: Tracks step dynamics, posture, and endurance, aiding athletes and casual users.
Medical & Rehabilitation: Monitors gait recovery, detects fall risk, and assesses physical therapy progress.
Elderly Care: Offers fall alerts, posture corrections, and mobility tracking for safer daily routines.
Professional Environments: Enhances ergonomic awareness in jobs that require extended standing or walking.

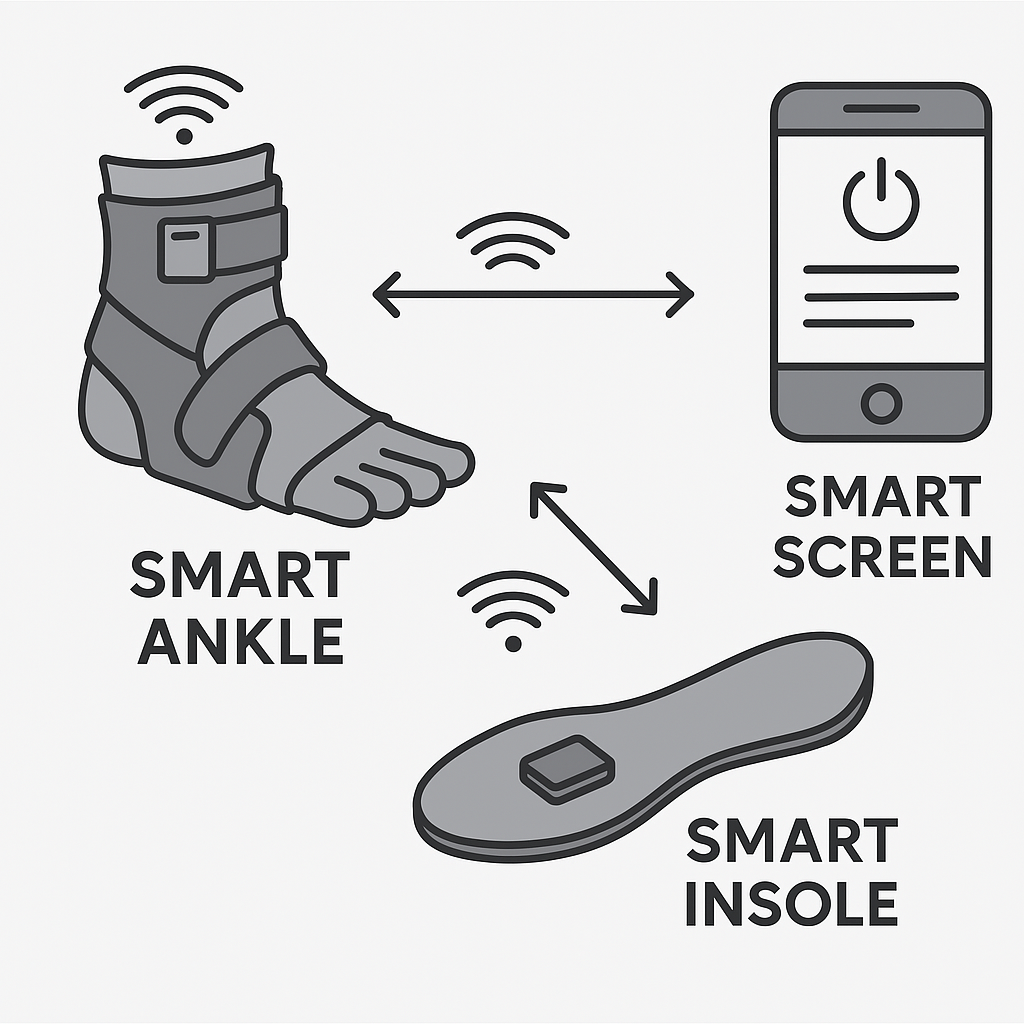

4. System Integration

AR/VR Smart Glasses: Visualize gait patterns, posture analytics, and activity prompts.
Smartphones & Smart Screens: Provide dashboards, reports, and settings adjustments.
Smart Belts & Bracelets: Collaborate with smart ankles to offer full-body posture assessments.

Conclusion Smart insoles and smart ankles are setting a new standard in wearable technology by providing vital mobility insights without the added complexity of thermal systems. These innovations empower users to optimize movement, enhance safety, and stay connected in an increasingly digital world. As AI and wearable ecosystems evolve, smart footwear will become a central tool in health, sports, and everyday life.

Smart Shoe Insoles: The Future of Footwear Technology

In the rapidly evolving world of wearable technology, smart shoe insoles are emerging as a groundbreaking innovation. These advanced insoles have the potential to transform traditional footwear into intelligent, high-tech gear by integrating cutting-edge features such as sensors, connectivity, and real-time data analysis.

The Role of Smart Shoe Insoles

Smart shoe insoles serve as an essential upgrade for standard shoes, equipping them with sophisticated technology. These insoles can monitor physical activity, track steps, measure foot pressure, and connect with external devices such as smartphones, smartwatches, and medical monitoring systems. With their ability to collect and analyze data, smart insoles empower users to optimize their fitness, enhance performance, and manage foot health effectively.

Integration of SIM Technology and External Control Devices

One of the most exciting advancements in smart shoe technology is the incorporation of SIM cards, allowing shoes to operate independently from smartphones. With built-in SIM connectivity, smart shoes can provide real-time GPS tracking, direct communication, and seamless synchronization with cloud-based platforms. This feature is particularly valuable for athletes, travelers, and individuals requiring location-based safety features.

Additionally, smart shoe insoles can be controlled via external smart devices, including smartphones, smart touchscreens, and AR/VR smart glasses. These interfaces provide users with real-time data visualization, allowing for a more immersive and interactive experience. AR/VR integration, for instance, can revolutionize fitness training, rehabilitation, and even gaming by providing detailed biomechanical insights in an engaging digital environment.

Advanced Features for Enhanced Comfort and Performance

Beyond basic tracking, smart insoles can include a range of advanced features designed to enhance user comfort and performance:

Heating and Cooling Functions: Temperature regulation for enhanced comfort in various climates.
Adaptive Sole Adjustments: Personalized cushioning that adjusts based on foot pressure and movement patterns.
Real-Time Data Processing: Continuous feedback on gait, posture, and foot health for medical and athletic optimization.

Applications and Future Prospects

Smart shoe insoles are poised to make a significant impact across multiple industries, including sports, healthcare, and daily lifestyle enhancement. In sports, these insoles provide athletes with crucial insights to improve performance and reduce injury risks. In healthcare, they assist in monitoring patients with diabetes, arthritis, or mobility issues, helping doctors and caregivers make data-driven decisions. Moreover, for everyday users, smart insoles offer a seamless way to track activity, improve posture, and stay connected through their footwear.

Conclusion

The evolution of smart shoe insoles represents a major step forward in wearable technology. By incorporating SIM technology, real-time connectivity, and external device integration, these insoles bridge the gap between traditional footwear and the digital age. As the technology continues to advance, smart insoles will likely become an essential part of modern footwear, enhancing comfort, performance, and connectivity in ways never seen before.

Technical Advancements in Smart Shoe Insoles: The Future of Connected Footwear

Introduction

Smart shoe insoles represent a pivotal innovation in wearable technology, transforming conventional footwear into intelligent systems through integrated sensors, connectivity modules, and adaptive features. These insoles provide advanced biomechanical analysis, real-time data transmission, and autonomous operation through SIM card integration.

Core Technological Components

1. Sensor Integration

Smart insoles incorporate a variety of sensors to monitor user activity and provide biomechanical feedback:

Pressure Sensors: Measure foot pressure distribution to detect gait abnormalities and optimize posture.
Accelerometers & Gyroscopes: Track movement, step cadence, and overall foot dynamics.
Temperature Sensors: Provide thermal feedback, enabling automatic heating and cooling functions.
Capacitive Sensors: Detect foot contact and analyze stance phases for rehabilitation applications.

2. Embedded SIM and Wireless Communication

A crucial development in smart insoles is the integration of embedded SIM (eSIM) technology, enabling independent wireless communication. Features include:

Cellular Connectivity (4G/5G LTE): Allows real-time GPS tracking and remote monitoring.
Bluetooth & Wi-Fi: Facilitates seamless data transmission to smartphones, AR/VR devices, and cloud platforms.
Near-Field Communication (NFC): Enables secure authentication and smart payments through footwear.

3. Adaptive Sole Technology

Smart insoles feature adaptive components that enhance user comfort and performance:

Electroactive Polymers: Provide dynamic cushioning that adjusts to pressure distribution.
Shape Memory Alloys: Modify the insole’s stiffness based on user activity.
Microfluidic Channels: Enable custom arch support and pressure redistribution.

System Integration with External Devices

1. AR/VR Smart Glasses

Smart insoles can synchronize with AR/VR systems, providing real-time biomechanical feedback for training, rehabilitation, and gaming applications. This integration supports:

Augmented Reality Visualization: Displays foot pressure mapping and movement analytics.
Virtual Training Environments: Enhances interactive fitness and rehabilitation sessions.

2. Smart Touchscreen Interfaces

Smart touchscreens, including smartphones and dedicated control panels, act as central hubs for monitoring insole performance. Features include:

Real-Time Gait Analysis: Displays step patterns and biomechanical efficiency.
Foot Health Diagnostics: Assesses plantar pressure distribution for medical applications.
Customizable Alerts: Notifies users about abnormal gait patterns or injury risks.

Advanced Functionalities

1. AI-Powered Data Processing

Machine learning algorithms analyze foot movement data to provide predictive analytics for injury prevention and performance optimization.

2. Energy Harvesting Mechanisms

Innovative self-powering techniques extend battery life and reduce dependence on external charging:

Piezoelectric Energy Harvesting: Converts kinetic energy from walking into electrical power.
Thermoelectric Generators: Utilize body heat to sustain sensor functionality.

3. Medical and Biometric Applications

Smart insoles facilitate advanced medical monitoring, offering:

Diabetic Foot Ulcer Detection: Monitors pressure hotspots to prevent complications.
Post-Surgery Rehabilitation Support: Tracks recovery progress through gait assessment.
Fall Detection Algorithms: Alerts caregivers in case of abnormal motion patterns.

Conclusion

Smart shoe insoles are at the forefront of wearable technology, combining biomechanical monitoring, AI-driven analytics, and autonomous connectivity through SIM integration. Their applications span across sports, healthcare, and augmented reality, revolutionizing how users interact with footwear. As technology advances, the integration of AI, energy harvesting, and medical diagnostics will further elevate smart insoles, making them an indispensable component of next-generation footwear solutions.

Smart insoles with active heating and cooling use thermoelectric modules, also known as Peltier devices, to regulate foot temperature dynamically. Here's how they work:

Heating Mechanism:

Thermoelectric Effect (Peltier Effect): When an electric current passes through the Peltier module, one side becomes hot while the other becomes cool.
Heat Distribution: The hot side is placed near the insole's surface, warming the foot.
Temperature Sensors: Ensure that the heating remains at a comfortable level, preventing overheating.
Battery-Powered: Energy can be supplied via a rechargeable battery or harvested from kinetic movement using piezoelectric elements.

Cooling Mechanism:

Reverse Thermoelectric Effect: When the current direction is reversed, the Peltier module's cool side faces the foot.
Heat Dissipation: The excess heat is redirected away from the insole using heat sinks or phase-change materials.
Smart Control: The system detects foot temperature and adjusts cooling intensity accordingly.

Here's a more technical explanation of the heating and cooling mechanism used in smart shoe insoles with thermoelectric modules:

Thermoelectric Heating and Cooling Mechanism in Smart Shoe Insoles

The thermoelectric modules (Peltier devices) integrated into smart insoles operate on the Peltier effect, where a temperature difference is created when an electric current flows through the junction of two different materials (typically semiconductors). These devices can either generate a heating effect or a cooling effect depending on the direction of the electric current.

Heating Mechanism (Thermoelectric Heating)

Peltier Effect in Action:
- The Peltier module consists of two materials with different electron densities, typically bismuth telluride (Bi2Te3). When a DC electric current flows through the module, heat is absorbed at one junction (the cold side) and released at the other junction (the hot side).
Heat Generation:
- The hot side of the Peltier device is placed against the insole's surface, while the cold side is either insulated or used for heat dissipation. The heat generated at the hot side transfers to the foot, providing warmth.
Heat Control:
- The system uses temperature sensors embedded within the insole to continuously monitor the foot's temperature. If the temperature exceeds a set threshold, the system reduces the current to lower the heating effect, maintaining optimal comfort.
Energy Source:
- The power required for heating is usually drawn from the battery integrated within the insole. Alternatively, kinetic energy harvested from walking (via piezoelectric energy harvesters) can also help power the heating mechanism, reducing the reliance on external power sources.

Cooling Mechanism (Thermoelectric Cooling)

Reversing the Current (Reversing the Peltier Effect):
- When the direction of the electric current is reversed, the cold side of the Peltier device faces the foot, and the hot side is exposed to the external environment (usually equipped with a heat sink to dissipate the heat).
Cooling Effect:
- The cold side absorbs heat from the foot, lowering the temperature of the insole. This process helps to cool down the foot, providing relief in warmer climates or during intense physical activity.
Heat Dissipation:
- The hot side of the module is equipped with a heat sink, which is designed to maximize heat dissipation into the surrounding environment, ensuring the system remains efficient. Additionally, phase-change materials (PCMs) or heat pipes may be used in advanced systems to absorb and transfer heat away from the Peltier device.
Temperature Feedback Loop:
- The insoles include temperature sensors that continuously monitor the foot’s thermal state. When the foot’s temperature reaches a predefined set point, the cooling effect adjusts automatically to maintain comfort levels, preventing the foot from becoming too cold.

Power Management and Efficiency

Energy Harvesting: In advanced designs, piezoelectric harvesters integrated into the sole can capture mechanical energy from walking, which powers the heating and cooling elements. This reduces the need for frequent battery recharges and enhances the device's sustainability.
Battery and Power Regulation: The system includes a battery management unit (BMU) that optimizes power distribution to both the Peltier modules and other sensors in the insole, ensuring efficient use of power without excessive drain.
Thermal Efficiency: The system employs active heat management to maintain efficiency. For instance, heat sinks and thermal insulation are used to prevent the heat generated on the hot side of the Peltier device from negatively impacting the cooling side.

Smart Shoe Insoles: Revolutionizing Footwear with Advanced Technology

The world of wearable technology continues to evolve, and one of the most exciting developments in this field is the emergence of smart shoe insoles. These high-tech insoles integrate advanced sensors, wireless communication, and adaptive features into footwear, offering a wide range of benefits from enhanced comfort to health monitoring. By upgrading regular shoes into "smart shoes," these insoles provide real-time data and valuable insights to improve user experience, health, and performance.

Core Technological Features

1. Sensor Integration for Biomechanical Monitoring

Smart shoe insoles come equipped with a variety of sensors that monitor and analyze user activity. These sensors provide feedback that can be crucial for improving performance, preventing injuries, and monitoring foot health:

Pressure Sensors: These sensors measure the distribution of pressure across the foot, identifying areas of potential stress or abnormal gait patterns. This can be crucial for detecting early signs of issues like foot deformities or imbalances that can lead to injury.
Accelerometers & Gyroscopes: These sensors track movement and step cadence, providing insights into walking and running efficiency, stride length, and foot dynamics.
Temperature Sensors: Monitoring foot temperature allows for the integration of active heating and cooling functions. The heating function helps in cold environments, while the cooling function provides relief in warmer conditions, ensuring maximum comfort for the user.
Capacitive Sensors: These sensors detect foot contact and help in understanding stance phases, which is beneficial for rehabilitation applications and users recovering from surgery or injury.

2. Embedded SIM and Wireless Communication

A significant leap forward in smart shoe insole technology is the integration of an embedded SIM (eSIM), which allows the insoles to communicate wirelessly without relying on a connected smartphone. The insole features multiple connectivity options:

Cellular Connectivity (4G/5G LTE): Provides real-time GPS tracking, remote health monitoring, and updates directly from the insole to cloud services or smartphones. This allows for seamless interaction, even when the user is far from their connected devices.
Bluetooth & Wi-Fi: Enables communication with external devices like smartphones, smartwatches, or AR/VR glasses, providing real-time data syncing and analysis.
Near-Field Communication (NFC): Smart insoles with NFC can be used for secure authentication and contactless payments, allowing users to make purchases or gain access to restricted areas directly from their shoes.

3. Adaptive Sole Technology

To enhance user comfort, many smart shoe insoles feature adaptive sole technology. These insoles are designed to automatically adjust to the user’s foot dynamics and activity levels:

Electroactive Polymers: These materials provide dynamic cushioning, which adapts to pressure distribution, helping to reduce fatigue and improve comfort throughout the day.
Shape Memory Alloys: These alloys change the stiffness of the insole based on user activity. For instance, the insole can become firmer during high-impact activities like running or softer when walking or standing for long periods.
Microfluidic Channels: These channels distribute pressure more evenly across the foot, providing personalized arch support that can be customized based on foot shape and pressure patterns.

4. Heating and Cooling Systems

Smart shoe insoles also incorporate thermoelectric modules (Peltier devices) that enable active heating and cooling systems for temperature regulation:

Heating: When an electric current flows through the Peltier module, the hot side warms the foot, providing comfort in cold conditions. The heating system is controlled by temperature sensors that prevent overheating.
Cooling: Reversing the current causes the cold side of the Peltier device to face the foot, absorbing heat and cooling the foot. This function is particularly beneficial in hot climates or after intense physical activity.

These systems use energy harvesting mechanisms (such as piezoelectric generators) to reduce reliance on battery power, making them more sustainable.

System Integration with External Devices

1. Augmented Reality (AR) and Virtual Reality (VR) Integration

Smart shoe insoles can sync with AR and VR systems to offer real-time, immersive feedback on foot movement and biomechanics:

Foot Pressure Mapping: Users can visualize how pressure is distributed across the foot during different activities.
Virtual Training: Athletes and rehabilitation patients can receive real-time data during virtual training sessions, improving performance or aiding recovery.

2. Smart Touchscreen Interfaces

Smartphones, tablets, and dedicated touchscreen control panels can act as hubs for monitoring insole data. These interfaces offer:

Real-Time Gait Analysis: Users can track their step patterns and biomechanical efficiency over time, which helps in improving walking or running form.
Health Monitoring: Foot health diagnostics are made possible, assessing things like plantar pressure distribution, which is useful for diabetic patients or those with chronic foot conditions.
Customizable Alerts: These alerts can notify users of abnormal gait patterns, which could indicate the risk of injury or poor posture.

Advanced Functionalities

1. AI-Powered Analytics

Using machine learning algorithms, smart insoles process vast amounts of biomechanical data to generate predictive insights. These insights can be used for:

Injury Prevention: Analyzing foot dynamics to predict and prevent injuries before they occur.
Performance Optimization: Providing suggestions to improve running efficiency or gait symmetry.

2. Energy Harvesting

Smart insoles employ innovative energy harvesting techniques to extend battery life:

Piezoelectric Energy Harvesting: Converts mechanical energy from walking or running into electrical energy, which can be used to power the insoles' sensors and heating/cooling systems.
Thermoelectric Generators: Utilize the body heat to generate power, ensuring that the insole remains functional even during extended use without requiring frequent recharging.

3. Medical and Biometric Applications

Smart insoles are particularly beneficial in healthcare, offering:

Diabetic Foot Ulcer Prevention: The pressure sensors in smart insoles can detect hotspots that could lead to diabetic ulcers, providing early alerts to help prevent serious complications.
Rehabilitation Monitoring: For patients recovering from foot surgery or injury, these insoles track gait recovery, offering valuable data to doctors and therapists.
Fall Detection: Using accelerometers and gyroscopes, smart insoles can detect falls and send alerts to caregivers, providing additional safety for elderly individuals or those with mobility issues.

Conclusion

Smart shoe insoles are an innovative development that blends comfort, performance, and health monitoring into a single, wearable technology. By integrating sensors, adaptive sole technology, and connectivity features like SIM cards and wireless communication, they provide a wide range of benefits across various domains, from sports and fitness to healthcare and rehabilitation. As technology continues to evolve, these insoles will play a pivotal role in enhancing our interaction with footwear, offering new possibilities in foot health, performance, and overall comfort.

Smart Shoe Insoles - Conclusion

Smart shoe insoles are transforming the way we think about footwear, combining the convenience of wearable technology with advanced health, performance, and comfort features. These insoles not only offer benefits such as real-time biomechanical monitoring and data analysis but also provide personalized comfort through adaptive sole technology and advanced heating/cooling systems.

With sensor integration that tracks pressure, movement, and temperature, smart insoles help users improve their foot health, prevent injuries, and enhance their overall fitness. The embedded SIM technology allows seamless communication with smartphones, AR/VR systems, and other connected devices, expanding the possibilities for interactive fitness, rehabilitation, and data-driven insights.

Moreover, the energy harvesting capabilities built into the insoles ensure that they remain powered during everyday activities, reducing reliance on frequent recharging. The inclusion of AI-driven analytics and predictive insights further supports injury prevention and performance optimization, allowing users to achieve their goals more effectively.

Whether for athletes, individuals recovering from surgery, or anyone looking to improve their foot health and comfort, smart shoe insoles offer a comprehensive solution that is revolutionizing the footwear industry. As the technology continues to evolve, these smart insoles are poised to become an essential part of our daily lives, providing both practical and cutting-edge solutions for foot care, health monitoring, and performance enhancement.

In conclusion, smart shoe insoles represent a leap forward in wearable technology, combining biomechanics, artificial intelligence, and energy efficiency to create a new era of intelligent footwear.
